SCREEN PRINTING MACHINERY AT IT'S FINEST

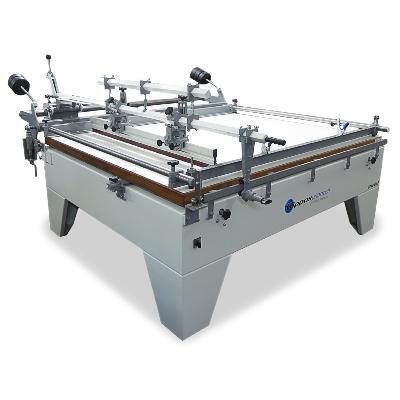

KIPPAX PRESSURE SET PRINT TABLE 6040-PC

KIPPAX PRESSURE SET PRINT TABLE 6040-PC


  1. KIPPAX PRESSURE SET VACUUM HAND PRINT TABLE 6040-PC has a maximum print area of 1524mm x 1016mm and an overall dimension of 2463mm x 2817mm



    PRODUCT FEATURES


    • Supplied with one arm squeegee

    • Rigid construction Constant print pressure control

    • Precision bearings on pivot and carriage

    • Fine pitch x-y registration on printing base

    • Strong silent vacuum unit with auto on/off or foot controlled vacuum if required

    • Overhead counter balance on models over 1390mm print area front to back

    • Sliding screen frame clamps for easy set-up

    AVAILABLE OPTIONS


    • Off contact by hand wheel

    • Pneumatic screen frame clamping

    • Precision Hand Table available on request (Traditionally for the PCB & ceramic printing market)

    ELECTRICAL REQUIREMENTS

    220/240v, Single phase, 50/60 Hz, 8 amps



    All machines are made to order so please allow a 6-8 week build time before your order is delivered. For further prices to include larger tables please contact us.













£ 11,530.00
KIPPAX-VACUUM TABLE- PRE
0g

All orders received before 2pm working days will be processed for a next day delivery service subject to stock and production time.
